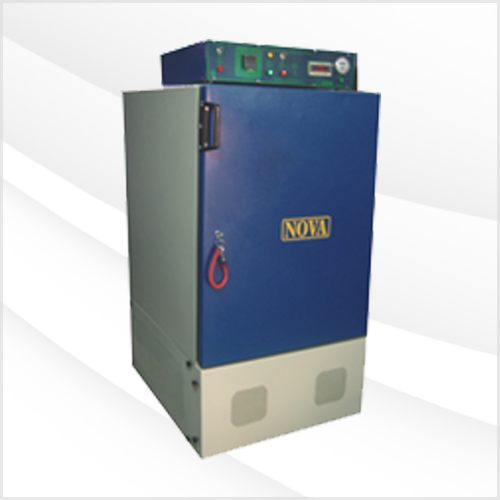

B.O.D.INCUBATOR WITH SHAKER [SHAKER CUM B.O.D.] (MICROPROCESSOR BASED PID CONTROL BASED)[BRUSHLESS INDUCTION MOTOR]
INTRODUCTION For BOD Incubator in Ahmedabad, BOD Incubator in Baroda And Surat
“NOVA ”MICROPROCESSOR BASED PID CONTROLBASED B. O. D. INCUBATOR WITH SHAKER is specifically designed to cater the needs of Incubation and routine determination of Biological Oxygen Demand on Water and Sewage, Biotechnology, Tissue Culture, Cultivation of Bacteria, Storage of Dairy Product, Shell Life Test, Medical Application, Microbiology, Virology, R & D, Pharmaceuticals, Bacteriological, Pathological & Q.C. Work.Nova Instruments For BOD Incubator in Ahmedabad, BOD Incubator in Baroda, BOD Incubator in Surat.
SALIENT FEATURES OF SHAKER:
Efficient Shaking.
Compact counter balance drive mechanism.
Working on eccentric.
Eliminating spring system.
Smooth & Perfect throw.
Highly efficient Brushless Induction Drive Motor.
Electronic AC frequency Drive for smooth RPM Control.
Smooth & Jerkless shaking.
Electronic Digital RPM Indicator & Speed Controller
with Pre-set facility.
Castor wheel for easy moveability.
Variable speed from 50 to 250 RPM.
Operatable 50 to 160/180 RPM Max.
Interchangeable trays for various size (Optional).
Chamber illumination (Optional).
SALIENT FEATURES OF INCUBATOR:
Sturdy Construction.
Easy moveability.
Digital Display & Control (Microprocessor PID Control Based).
Fully Automatic Control System.
Stainless Steel Inner chamber.
Full view Inner Glass Door.
Force Air Circulation for uniform temperature.
Slow Temperature Rise Heaters for long life.
APPLICATION:
“NOVA” MICROPROCESSOR BASED PID CONTROL BASED B. O. D. INCUBATOR WITH SHAKER are available in various size, capacity and inner chamber material for various application and uses in Biology, Virology, Biotechnology, Tissue Culture, Oceanography, Water Pollution, Medical, Microbiology, Sewage, R & D, Agriculture, Dairy Product, Food Research Lab, Bacteriological, Pathological & Quality Control Work and other application include cultivation of Bacteria, Shell Life Test, Cultivation of insect varieties for Genetic Studies, Preservation of vaccine and other test demanding constant and uniform temp. below and above ambient with or without shaking.
CONSTRUCTION:
Double walled construction, exterior of Mild Steel finished in powder coating paint. Interior made of STAINLESS STEEL. Glass wool insulation will be provided between the chambers to minimize heat/cool loss. Full glass door will be provided. The door will be of double walled provided with magnetic gasket, lock and handle. Removable tray of suitable tray capacity is provided. Forced air circulation is provided for uniform temperature. Brushless Induction Motor driven shaking system along with Electronic AC frequency drive and Digital RPM Meter for shaking. The entire unit rest on castor wheels for easy move ability.
HEATING & COOLING:
Heating by long lasting air/strip heaters provides heating above ambient temperature with Electronic PID Control and display system. Hermetically sealed compressor/condensing unit coupled with evaporation coil and fan cooled condenser provide cooling below ambient temperature.
CONTROL SYSTEM:
All the controls are provided on the front top side of the unit for easy assessment, operation and maintenance.
PANEL:
The control panel system is consisting of Mains Switch, Mains Indicator, Digital Micro-Control/PID Controller, Heating ON Indicator, Cooling ON Indicator, Shaker ON/OFF Toggle Switch, Shaker ON Indicator, Digital RPM Indicator cum Controller etc.
TECHNICAL SPECIFICATION:
Temperature Range
10/15 Deg. C to 60 Deg. C.
Indication Resolution
+/- 0.1 Deg. C.
Control Accurac
+/- 0.8 Deg. C or better for PID Control System at 25 Deg. C.
Senser
Pt-100 type.
RPM
50 to 200/250 RPM Continuously variable & settable
Continuous operatable – Range 50 to 160/180 RPM Max.
RPM Setting
DIGITAL.
RPM Indicator
DIGITAL.
Shaking
By BRUSHLESS INDUCTION MOTOR with AC Frequency Drive system incorporated with Mechanical set consisting of eccentric, Bearing housing, Counter Balance Fly wheel.
Trays
Suitable to rest on shaking device capable to take suitable load.
Oscillation
Circular throw type (Orbital)
Power Supply
230 V AC, 50Hz Single Phase.
SHAKER WILL BE PROVIDED WITH SET OF ANTI VIBRATION PAD.
B.O.D Capacity ( Appx.)
Shaker Capacity & Flask Combination
04 cuft (100 liter)
[a] 16 Fask of 250ml
06 cuft (175 liter)
[a] 16 Flask of 250ml. or or [b] 09 Flask of 500ml.
10 cuft (270 liter)
[a] 16 or 25 Flask of 250ml. or [b] 16 Flask of 500ml.
12 cuft (325 liter)
[a] 25 Flask of 250ml. or [b] 25 Flask of 500ml.
OPTIONAL ACCESSORIES :
• Suitable Voltage Stabilizer (Optional)
• Illumination with Timer (Optional).
