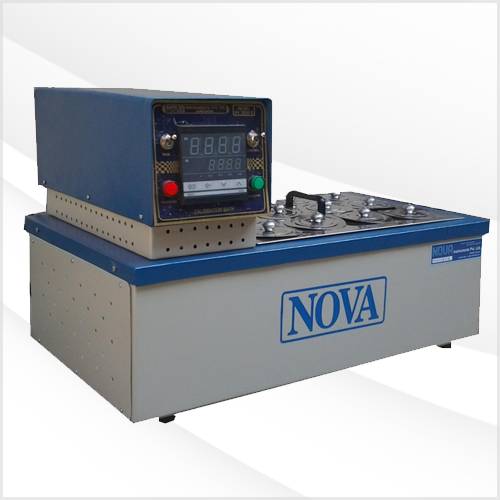

DIGITAL CONSTANT TEMPERATURE WATER BATH WITH LID HAVING 12 HOLE OR 6 HOLE OF 3” DIA
INTRODUCTION :
The Circulator Bath is designed to control the temperature of sample samples in close circulation. The Bath can be used for Calibration.
The test samples in drenched bottle/tubes/beakers can be directly immerse in vessels / Bath. The precise control will be achieved by Microprocessor PID Auto tune/self tune controller with recirculating of the bath liquid.
The inner chamber of the Bath is made of S.S.304. The outside chamber of the bath will be made of M.S./GI duly powder coated.
SALIENT FEATURES:
Rectangular in shape.
Easy to operate.
Lid with 12 or 6 Hole of 3” Dia with concentric rings.
High & Reproducible Accuracy.
Clear Working space.
Uniform heating & stirring.
High sensitive temperature sensor.
Digital Temp. Indication & Control (Micro Control)
Digital Microprocessor Auto tune PID Control (Optional).
Microprocessor Based Programmable Control [Optional].
DIGITAL CONSTANT TEMPERATURE WATER BATH
INTRODUCTION :
NOVA DIGITAL CONSTANT TEMPERATURE WATER BATH WITH LID is specifically designed to cater the needs for Laboratory, R & D, Quality Control and Analytical Work.
APPLICATION :
NOVA DIGITAL CONSTANT TEMPERATURE WATER BATH WITH 12/6 HOLE LID are available for various use in R & D Centers, Quality Control Departments, Universities, Post-Graduate Institutes, Medical Colleges, Research Organizations, Industries, Refineries and Petroleum Testing Laboratories..
CONSTRUCTION :
Double walled construction. The working chamber is made out of selected grade thick STAINLESS STEEL Sheet. Outer chamber made of Mild Steel duly powder coated. The heaters are of immersion heaters resulting in quick transfer of heat to the bath media. The circulation stirrer unit is accommodated near the heaters.
HEATING :
Heaters are incorporated and control by Digital Temperature Indicator cum Controller as standard.
CONTROL SYSTEM :
All the controls are provided on TOP/SIDE/FRONT for easy assessment and operation consisting of Mains switch, Mains Indicator, Digital Temperature Indicator cum Controller, Stirrer ON/OFF Switch & Indicator.
TECHNICAL SPECIFICATION :
TEMPERATURE RANGE
5 Deg. C above ambient to 95 Deg. C.
RESOLUTION
0.1 Deg. C.
CONTROL ACCURACY
+/- 1 Deg. C or better.
SENSOR
Pt-100 type.
STIRRING
Motorized Stirrer Built-in.
POWER SUPPLY
230 V AC, 50 Hz.
LID
Lid will be provided with concentric rings.
AVAILABLE MODELS & CONTROL SYSTEMS
NAME OF ITEM
CAPACITY
RESOLUTION
[DEG. C.]
CONTROL SYSTEM & ACCURACY
[DEG. C.]
DIGITAL
PID
PROG.
CONSTANT TEMP.BATH WITH LID & CONCENTRIC RING
12 HOLE OF 3” DIA
+/- 0.1
+/- 0.5
+/- 0.3
+/- 0.3
CONSTANT TEMP.BATH WITH LID & CONCENTRIC RING
6 HOLE OF 3” DIA
+/- 0.1
+/- 0.5
+/- 0.3
+/- 0.3
HEATER WATTAGE : 1.0 TO 2.0 KW AS PER SIZE & TEMPERATURE RANGE.
N. B. :- ALL THE BATHS ARE PROVIDED WITH TEST & CALIBRATION REPORTS FROM OUR ASSOCIATE M/S.NOVA CALIBRATION CENTRE WITH TRACEABILITY TO NATIONAL STANDARD.
