Product >> Laminate Testing Instrument >>Grel Plate For Resin Test

Nova Instruments For Gel Timer in Ahmedabad, Gel Timer in Baroda, Gel Timer in Surat GEL PLATE FOR RESIN TEST Nova Instruments For Gel Timer in Ahmedabad, Gel Timer in Baroda, Gel Timer in Surat

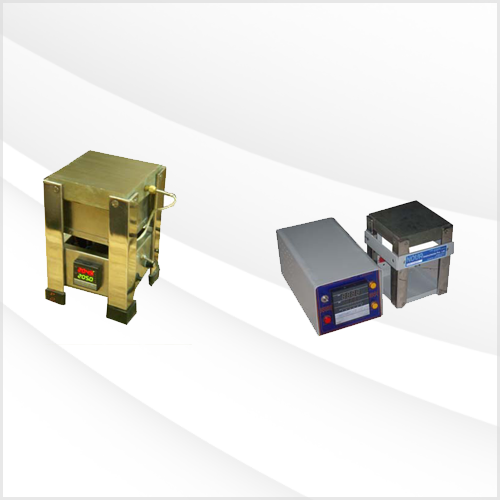

SPECIALLY DESIGNED GEL PLATE FOR RESIN TEST
[DIGITALPID MICROPROCESSOR BASED MODEL] [FOR DECORATIVE LAMINATE TESTING]

SALIENT FEATURES For Gel Timer in Ahmedabad, Baroda, And Surat
  • PID Microprocessor Control.
  • Uniform Surface Temperature.
  • Thick Alloy Block.
  • I.R. Heater.
  • Top Surface Harden & Grinded
  • SUITABLE FOR RESIN TEST

CONSTRUCTION:

The heating block is made out of Thick Alloy block duly machined harden & grinded/polish and fitted with Pt-100
sensor.

The heating block is fitted with specially designed ceramic/infrared or suitable heater.

The Hot Plate will be supported by 4 heavy angle. The control system will be provided separately consisting of PID
Controller, Mains ON/OFF switch, SSR & Electronic circuit etc.
TECHNICAL SPECIFICATION :
SIZE OF HOT PLATE 150 x 150mm approx.
THICKNESS OF TOP PLATE 30/35mm approx.
TEMPERATURE RANGE R.T.+ 15 Deg. C above ambient to 250 Deg. C surface Temp.
RESOLUTION 0.1 Deg. C.
CONTROL ACCURACY +/- 3 Deg. C or better.
SURFACE TEMPERATURE UNIFORMITY

Within +/- 1% FSD or +/- 3 Deg. C or better within 120mm x 120mm surface area from center.
OVERALL SIZE As required.

SPECIAL NOTE: THE “NOVA” DIGITAL CONTROLLER WILL BE PROVIDED WITH TEST AND CALIBRATION CERTIFICATE FROM OUR ASSOCIATE M/S. NOVA CALIBRATION CENTRE HAVING TRACEABILITY TO NATIONAL STANDARD.Nova Instruments For Gel Timer in Ahmedabad, Gel Timer in Baroda, Gel Timer in Surat.
Nova Instruments For Gel Timer in Ahmedabad, Gel Timer in Baroda, Gel Timer in Surat
SPECIALLY DESIGNED GEL PLATE FOR RESIN TEST
