HIGH PRECISION BATH

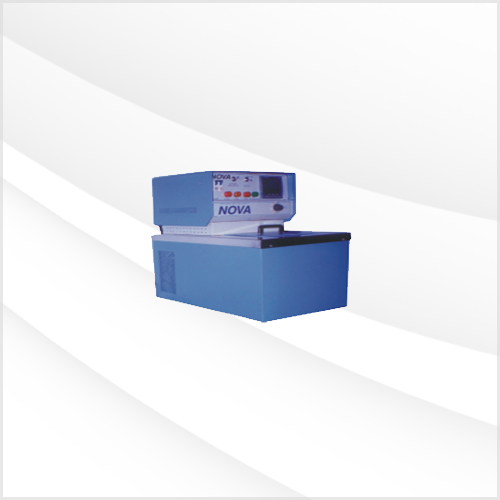

HIGH PRECISION DIGITAL CIRCULATOR BATH

INTRODUCTION :

The Circulator Bath is designed to control the temperature of sample samples in close circulation. The Bath can be used for Calibration.

The test samples in drenched bottle/tubes/beakers can be directly immerse in vessels / Bath. The precise control will be achieved by Microprocessor PID Auto tune/self tune controller with recirculating of the bath liquid.

The inner chamber of the Bath is made of S.S.304. The outside chamber of the bath will be made of M.S./GI duly powder coated.

TECHNICAL SPECIFICATION:

BATH COVER	Flat type Made of S.S.304 Quality or Insulated if required and ordered.
CAPACITY	5/10/15/30 Litre Approx.- 0.01 Resolution.
TEMP. RANGE	5 Deg. C above ambient 60.0/80.0/95.0/99.9 Deg. C. with 0.1 accuracy.
TEMP.STABILITY	+/- 0.08 Deg. C
TEMP. DISPLAY/ RESOLUTION	By Digital LED with 0.01 Deg. C.
HEATER CAPACITY	500 W to 2500 W Approx. as per Size
STIRRER	Built-in Motorized.

HIGH PRECISION DIGITAL CIRCULATOR BATH

N.B. : Bath will be provided with the calibration certificate from our associate M/s. NOVA CALIBRATION CENTRE having traceability to National Standard.

SPECIAL NOTE :

For the best stability, following points should be consider.

Placement of the bath in room without having direct air draught from doors, windows, fan etc.& there should be no major variation in the ambient temperature. Further, following points should be consider for achieving the offered stability.

* Liquid Use

* Changing of the load etc.

Keep the bath in AC Room in operating temperature at 27°C.

OPERATING VOLTAGE : 230 Volts Single Phase 50 Hz AC.

CAPACITY (LITRE)	TEMPERATURE RANGE	CONTROL SYSTEM & ACCURACY (DEG. C.)
CAPACITY (LITRE)	TEMPERATURE RANGE	PID CONTROL	PROGRAMMABLE MODEL
05	5° C above ambient to 70.0/80.0/95.0/99.99°C	+/- 0.08 +/- 2 Digit AT 27Deg. C +/- 0.05 Deg. C	+/- 0.08 +/- 2 Digit AT 27Deg. C +/- 0.05 Deg. C
10	5° C above ambient to 70.0/80.0/95.0/99.99°C	+/- 0.08 +/- 2 Digit AT 27Deg. C +/- 0.05 Deg. C	+/- 0.08 +/- 2 Digit AT 27Deg. C +/- 0.05 Deg. C
15	5° C above ambient to 70.0/80.0/95.0/99.99°C	+/- 0.08 +/- 2 Digit AT 27Deg. C +/- 0.05 Deg. C	+/- 0.08 +/- 2 Digit AT 27Deg. C +/- 0.05 Deg. C
30	5° C above ambient to 70.0/80.0/95.0/99.99°C	+/- 0.08 +/- 2 Digit AT 27Deg. C +/- 0.05 Deg. C	+/- 0.08 +/- 2 Digit AT 27Deg. C +/- 0.05 Deg. C
