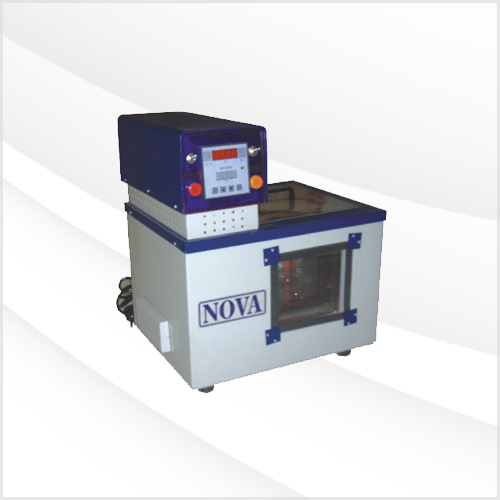

DIGITAL CONSTANT TEMPERATURE VISCOSITY BATH[KINEMATIC BATH]
INTRODUCTION :
NOVA DIGITAL CONSTANT TEMPERATURE VISCOSITY BATH is specifically designed to cater the needs for Laboratory, R & D, Quality Control and Analytical Work.
SALIENT FEATURES:
Easy to operate.
High & Reproducible Accuracy.
Clear Working space.
Uniform heating & stirring.
Digital Temperature Indication & Control (Micro Control)
High sensitive temperature sensor.
Toughen Glass Window – Both side.
Digital Microprocessor Auto-tune PID Control (Optional).
Microprocessor Based Programmable Control. [Optional].
CONSTANT TEMPERATURE VISCOSITY BATH
APPLICATION:
NOVA DIGITAL CONSTANT TEMPERATURE VISCOSITY BATH are available for various use in R & D Centers, Quality Control Departments, Universities, Post-Graduate Institutes, Research Organisations, Industries, Refineries and Petroleum Testing Laboratories especially for determination of viscosity of liquids etc.
CONSTRUCTION:
Double walled construction. The working chamber is made out of selected grade thick STAINLESS STEEL Sheet. This is mounted in a Mild Steel cabinet duly powder coated. The heaters are of tubular type immersion heaters resulting in quick transfer of heat to the bath media. The circulation stirrer unit is accommodated near the heaters in a separate compartment separated by a weir arrangement hence the bath is available obstruction free for use. GLASS WINDOW ON BOTH SIDE IS PROVIDED TO SEE THROUGH THE SAMPLES.
HEATING:
are incorporated and control by Digital Temperature Indicator cum Controller.
CONTROL SYSTEM:
All the controls are provided on top/side for easy assessment and operation consisting of Mains switch, Mains Indicator, Digital Temperature Indicator cum Controller and Heater ON/OFF Indicator, Stirrer ON/OFF Toggle switch.
BHATH MEDIA:
5 Deg. C above ambient to 95 Deg. C water can be conveniently made use of but for temperature above 95 Deg. C. water with thin layer of paraffin or technical white oil can be used.
OPERATING VOLTAGE : 230 Volts Single Phase 50 Hz AC.
VISCOSITY BATH ARE AVAILABLE IN FOLLOWING CAPACITY & CONTROL SYSTEM.
VOLUME
LTR (APPX)
DIMENSION
APPX.
VISCOMETER
CAPACITY
MEDIA
RECOMM-
ANDED
RESO-LUTION
(DEG.C)
CONTROL SYSTEM & ACCURACY [DEG.C.]
OPENING
(mm)
DEPTH
(mm)
DIGITAL
PID
PROG.
12 Litre
120x220
300
2 Nos.
Water + Light Min. Oil
+ 0.1
+/- 0.5
+/- 0.3
+/- 0.3
25 Litre
200x260
300
4 Nos.
Water + Light Min. Oil
+ 0.1
+/- 0.5
+/- 0.3
+/- 0.3
30 Litre
300x260
300
6 Nos.
Water + Light Min. Oil
+ 0.1
+/- 0.5
+/- 0.3
+/- 0.3
40 Litre
370x260
300
8 Nos.
Water + Light Min. Oil
+ 0.1
+/- 0.5
+/- 0.3
+/- 0.3
MODELS WITH 0.01 RESOLUTION AVAILABLE OPTIONALLY ON REQUEST
HEATER WATTAGE : 1.0 TO 2.5 KW AS PER SIZE & TEMPERATURE RANGE.
NOTE :-
ALL THE BATHS ARE PROVIDED WITH TEST & CALIBRATION REPORTS FROM OUR ASSOCIATE M/S.NOVA CALIBRATION CENTRE WITH TRACEABILITY TO NATIONAL/INTERNATIONAL STANDARD.
