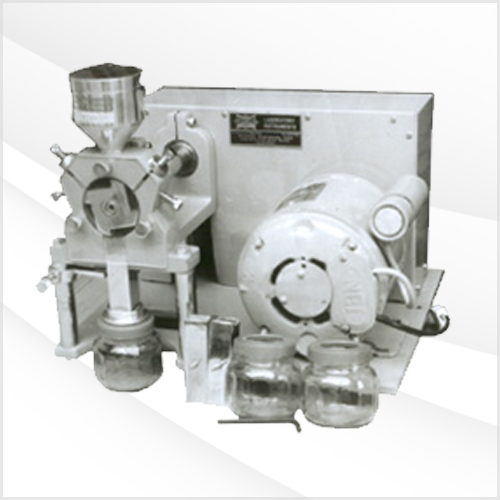

For the rapid  milling  of  laboratory  samples  of desiccated plant tissue or similar materials. Fitted with rugged, compact ¼ HP  Motor. In use samples  are introduced  through  the hopper at the top & agitated by the high speed of the rotor until cut to sufficient fineness tofall through the screen top of  the  removable delivery  tube  which  forms the bottom of  the mill chamber. A  removable  polished  glass/perpex plate  cover  over  the  face  of  the  chamber  size permits  observation  of  the  sample during  operation  and provide  easy access  to the chamber for cleaning. 3  speed  can be obtained  by changing the position of V-belt.

Small samples  can  be  collected  in  a  22mm square x 19mm deep receiver which fits  directly  over  the  lower  end  of  the  delivery tube, larger samples can be  collected  in a 4 oz screw top jar which can be attached to the lower  end of the delivery tube   by   means   of  a  special   threaded  adapter. Supplied complete  with  hopper  with   cover,  wooden  plunger,  three delivery tubes with tops of 20,40 & 60mesh screen respectively   & receiver. FOR OPERATION 230 VOLTS A.C.SINGLE PHASE.
